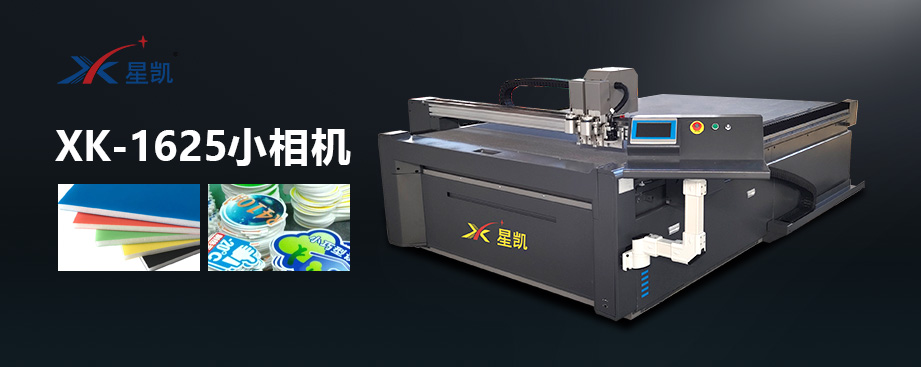

1625 Small camera Oscillating knife cutting machine
Product Vibrating Knife Cutting Machine for Advertising materials Vibrating Knife Cutting Machine for Auto Interior Material Vibrating Knife Cutting Machine for composite material Vibrating Knife Cutting Machine for Packaging paper box material Vibrating Knife Cutting Machine for Sofa floor mat material Vibrating Knife Cutting Machine for Sports equipment materials Vibrating Knife Cutting Machine for textile fabric
- SIZE3700*2500*1350mm
- Feeding methodAutomatic loading
- Positioning functionRed Cross Positioning
- Control systemRui Da / Zhong Rui optional
- Cutting speed0-1800mm/s（Subject to material）
- Cutting precision±0.2mm
- Display ModeChinese and English LCD touch screen
Enquire about this product
Products

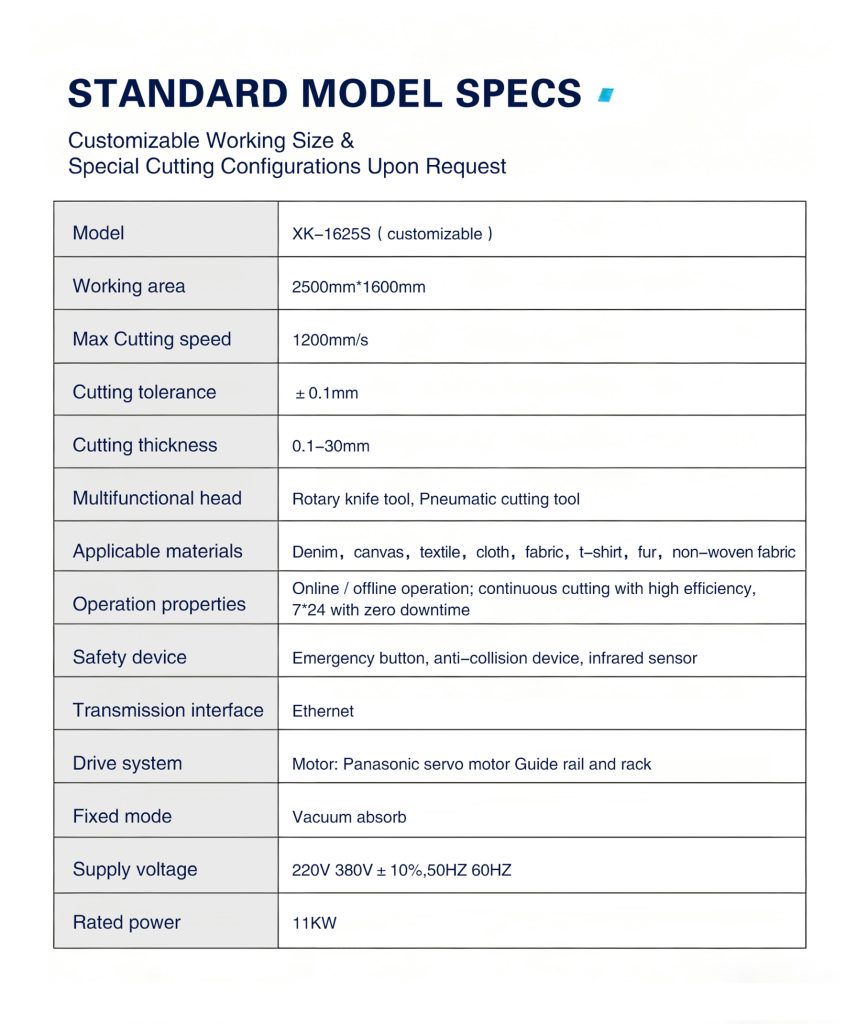

Product Parameter
Product Album
1、Applicable industries
This model is suitable for advertising sign industry, household industry and other raw materials with mark point material processing, can cut a variety of flexible materials, including KT board, backing stickers, PVC hard sheet, oil painting canvas, colour printing cardboard mouse pads, canvas bags and many other materials.
2、camera recognition
The machine is equipped with a small CCD camera, which can identify the mark points on the material in order to achieve the positioning of the material cutting will be electronic graphics into the machine, the small camera photographed to extract the cutting path, the machine has a high degree of automation and fast cutting efficiency.
3、multi-purpose
Advertising industry user orders demand, more money, less quantity, high quality requirements, has been a traditional small business survival of a major problem, how to transform to improve competitiveness is imminent. Xingkai to customer demand-oriented, to provide professional cutting integrated solutions. Precise CCD positioning cutting function, can be quickly completed in a short period of time, full cut, half cut, milling, drawing, creasing or punching and a series of processing action.
4、Quick tool change
With strong versatility, it is easy and quick to change tools, and more comfortable in cutting different materials.
SELECTING A TOOL
振动刀
拖刀
半切刀
铣刀
圆刀
气动刀
压轮
大功率
vibrating knife
Through the principle of high-frequency vibration to cut through the material, more suitable for pvc, kt board below 5mm and medium density flexible materials, you can choose to install 45 °, 26 °, 16 ° and other different angles of the cutting blade to complete the cutting of different thicknesses of materials.
dragging knife
Suitable for cutting pvc material below 5mm as well as rolls, light box cloth and other flexible materials penetration cutting, drag knife has a wider range of applications, according to different materials, you can choose different angles of slicing.
secateurs
Half cutter tool can automatically adjust the depth of the tip of the knife, do only cut through the upper half of the material without damaging the lower half of the material, mainly used in labelling, stickers and other materials cutting, cutting speed can be up to the fastest 100mm/s, can be used instead of cutting the work of the lettering machine.
cutter
The milling tool is used to mill and cut hard materials through the high-speed water-cooled motor rotating at high speed, and can be used to cut hard materials such as acrylic, aluminium composite board, density board, etc. with a thickness of up to 20mm.
circle cutter
The material is cut by rotating the blade at high speed. It can cut a wide range of flexible materials such as flag cloth, non-woven fabrics, textile fabrics and so on.
pneumatic knife
The pneumatic knife is an economical and efficient option for single-ply cutting of glass and carbon fibres as well as technical textiles. In use these knives offer fast processing speeds and a clean, efficient workflow.
press wheels
Creasing tools are used to crease corrugated cardboard and honeycomb board by means of a creasing wheel, which can be used to process materials of different thicknesses.
High Power Vibrating Knife
High-power vibration knife is a professional tool for high-frequency cutting, which can change the frequency of blade cutting to get different processing effect.
FAQ
How can you recommend the right equipment for me?
You need to tell me the following information and I will recommend or customise the product for you:
1、What material do you want to cut?
2、What is the maximum size of the original material?
3、What is the thickness of the material?
How do I customise my product?
We will discuss the details with you, clarify your requirements and then provide you with expert advice to ensure that the machine meets all your requirements and is optimally cost-effective.
What is the warranty policy?
Our product warranty is 24 months after delivery, free of charge for major components (except consumables), failures due to quality issues during this period are covered by the warranty.
Can I still get technical support after the warranty expires?
We provide lifetime technical support for our products, you can consult us at any time!
Recommended Products
1615 Suction cup feeding Oscillating knife cutting machine
- SIZE2300*2500*1350mm
- Feeding methodAutomatic loading
- Positioning functionRed Cross Positioning

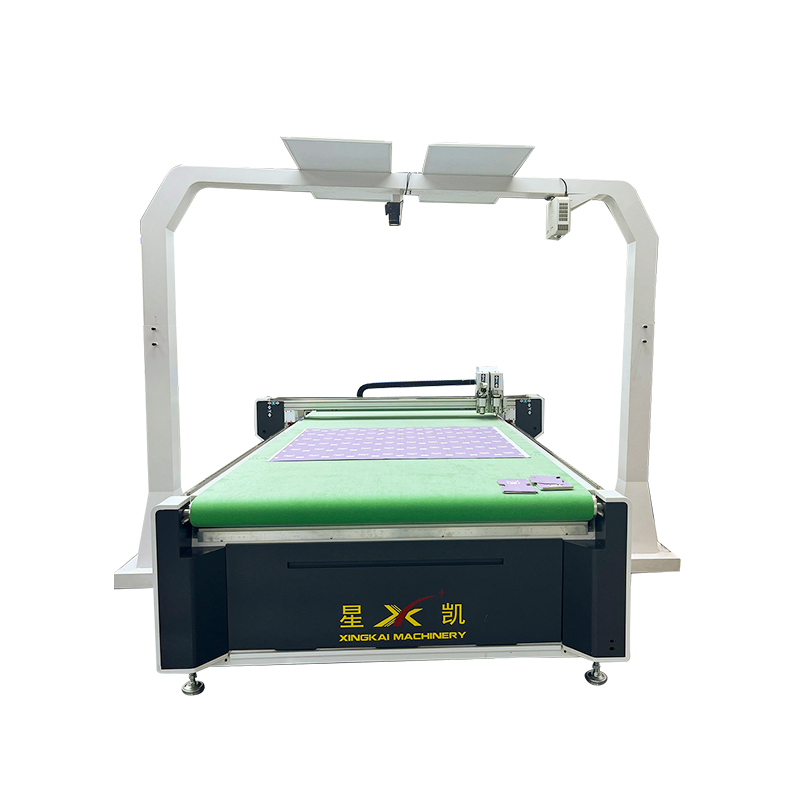

Large Camera Recognition Oscillating Knife Cutting Machine
- SIZE3700*2500*1350mm
- Feeding methodAutomatic loading
- Positioning functionRed Cross Positioning

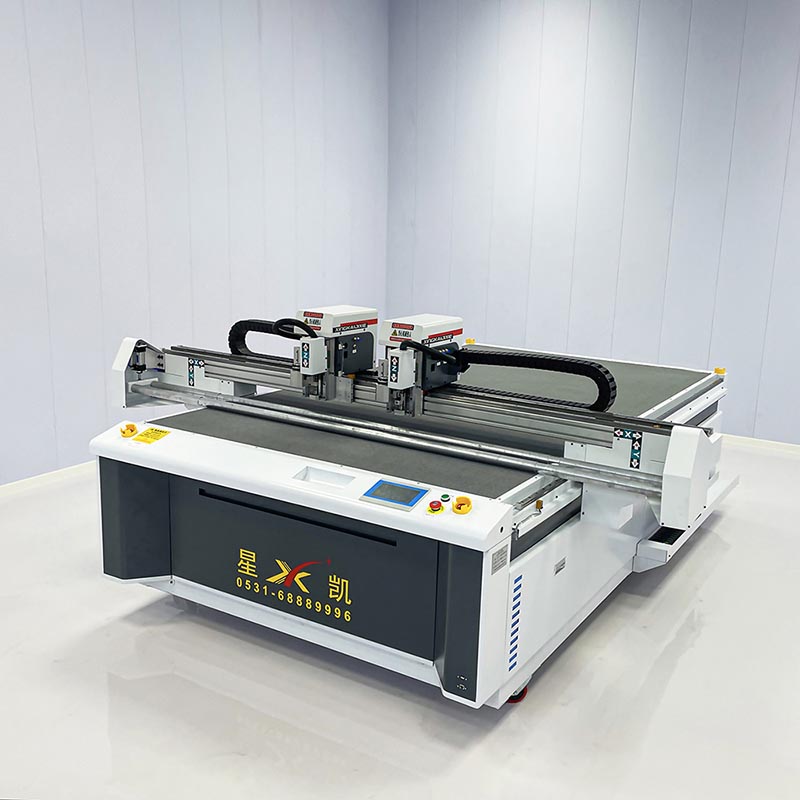

1625 Dual-head Oscillating knife cutting machine
