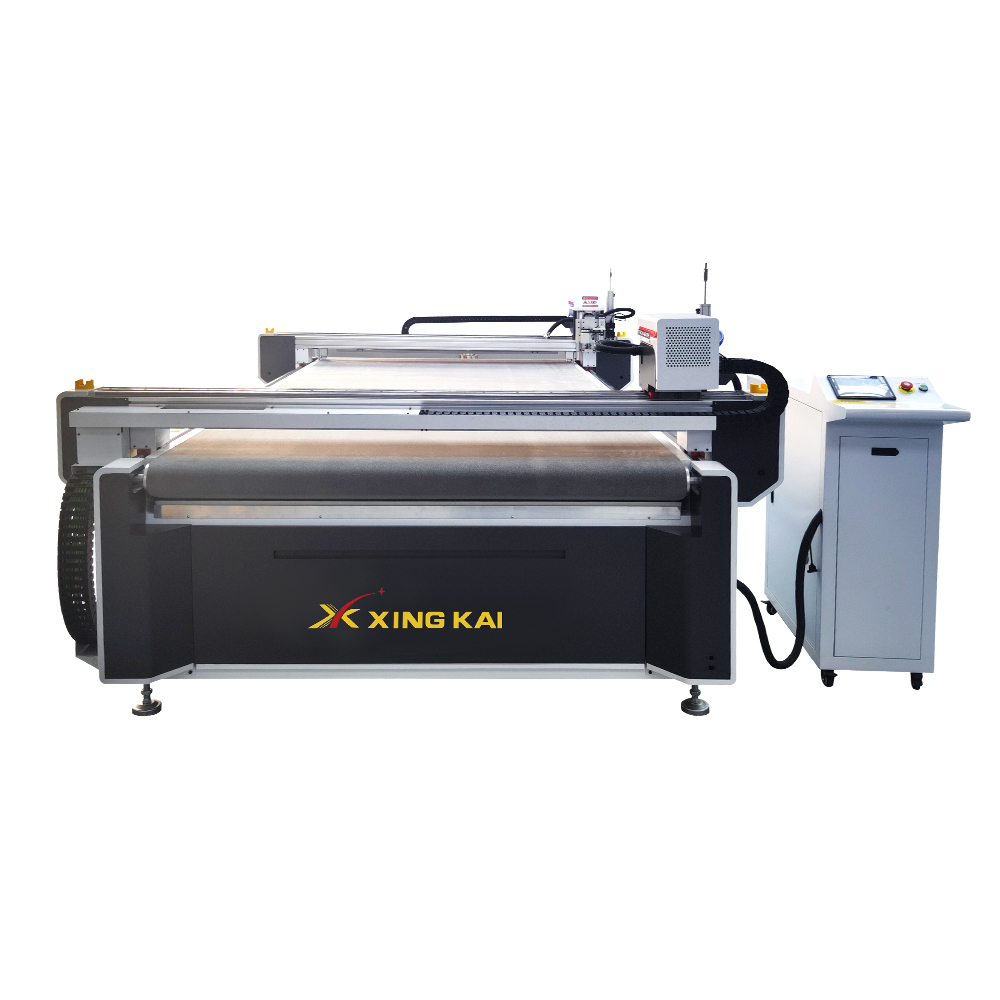

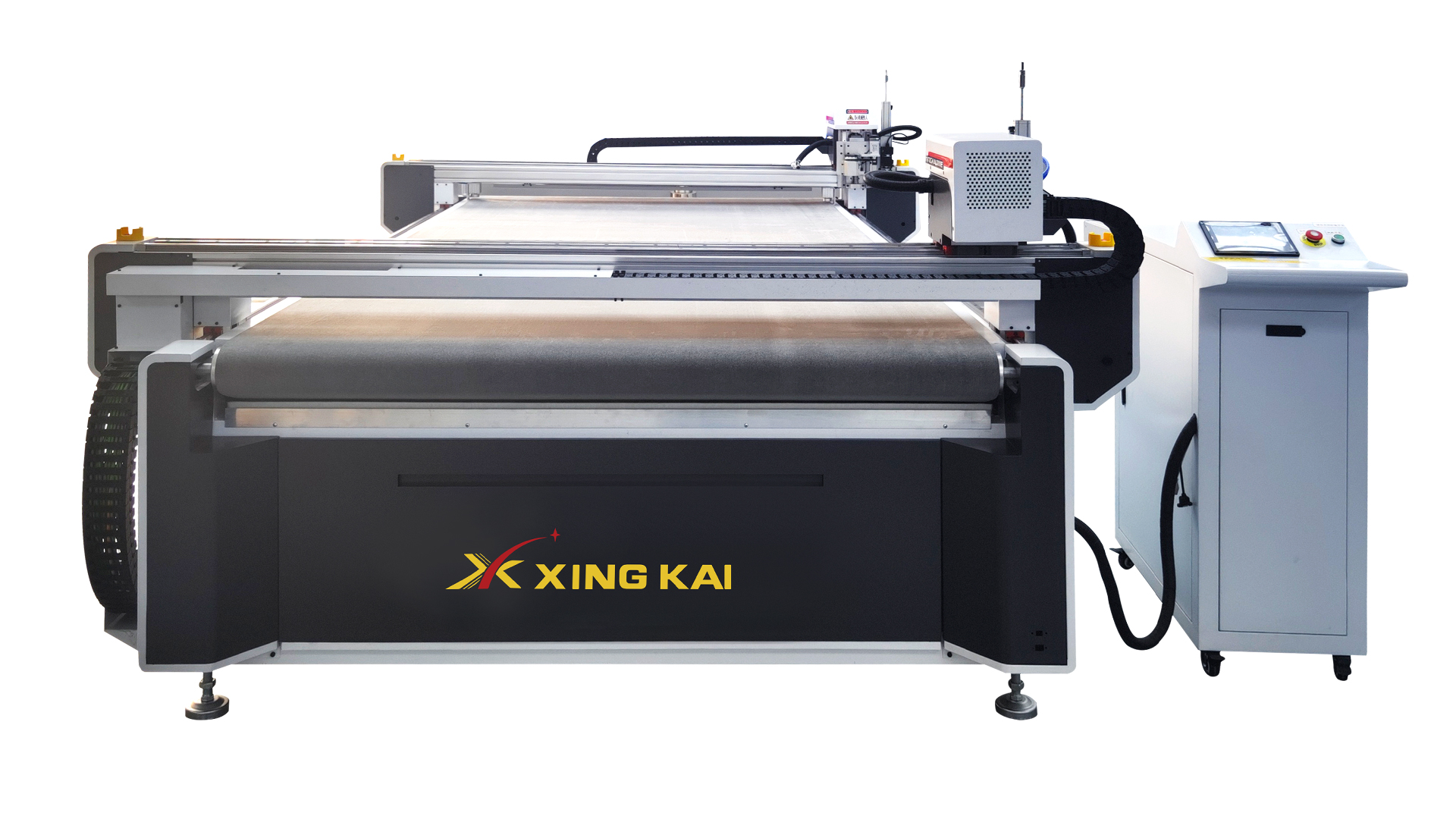

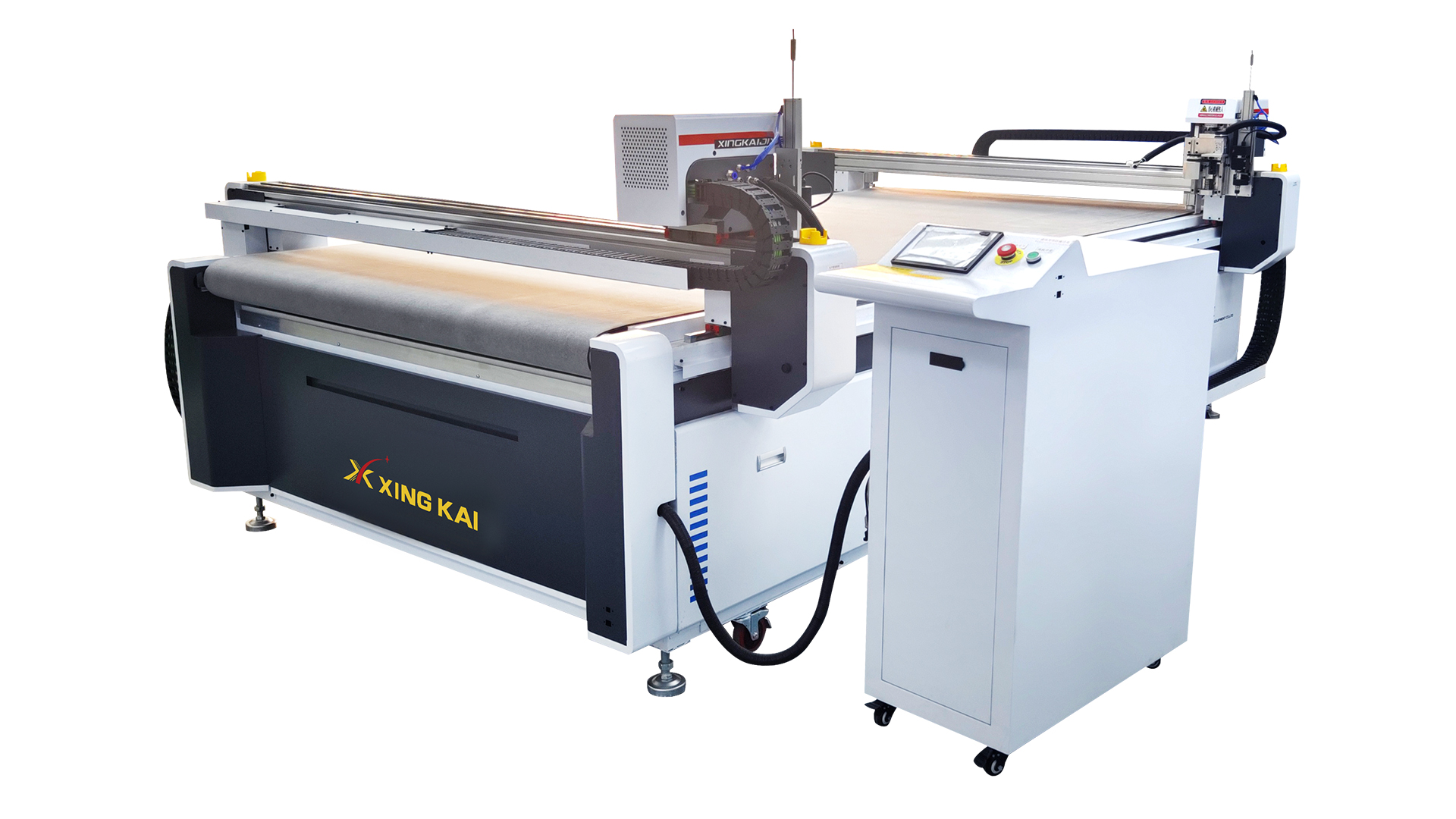

1625 Double beam vibrating knife cutting machine
Product Vibrating Knife Cutting Machine for Advertising materials Vibrating Knife Cutting Machine for Auto Interior Material Vibrating Knife Cutting Machine for composite material Vibrating Knife Cutting Machine for leather material Vibrating Knife Cutting Machine for Sofa floor mat material Vibrating Knife Cutting Machine for Sports equipment materials Vibrating Knife Cutting Machine for textile fabric Vibrating Knife Cutting Machine Shoe materials, luggage materials
- SIZE3700*2500*1400mm
- Feeding methodAutomatic loading
- Positioning functionRed Cross Positioning
- Control systemRui Da / Zhong Rui optional
- Cutting speed0-1800mm/s（Subject to material）
- Cutting precision±0.2mm
- Display ModeChinese and English LCD touch screen
Enquire about this product
Products
Product Parameter
Product Album
1、Applicable industries
This model is suitable for the bag industry, advertising industry, household industry and other large format processing, the requirement of efficiency, can cut a variety of flexible materials, including leather, leather, PU leather, nylon cloth, Oxford cloth and other materials.

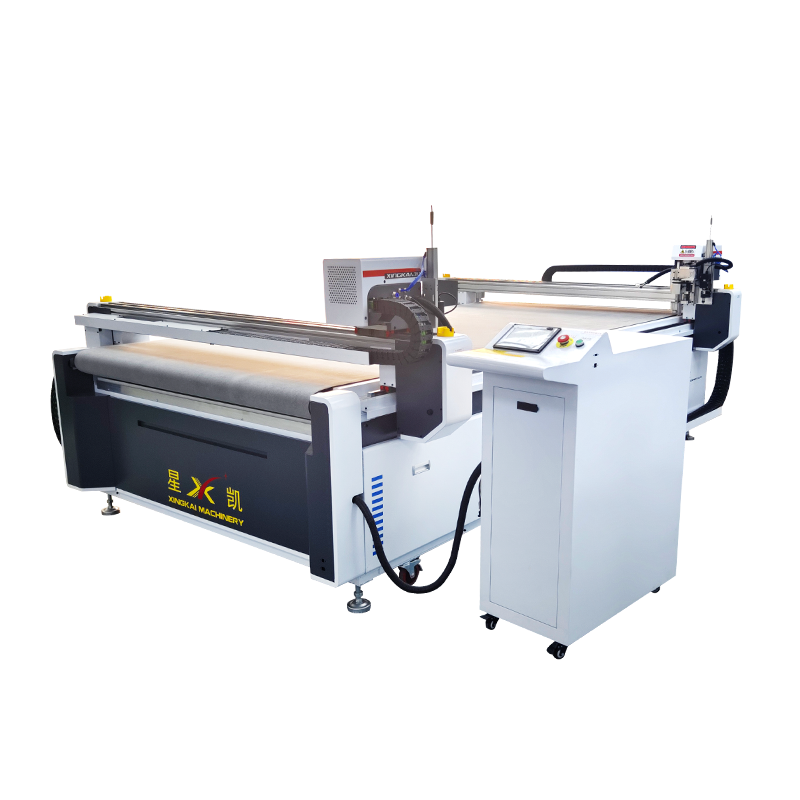

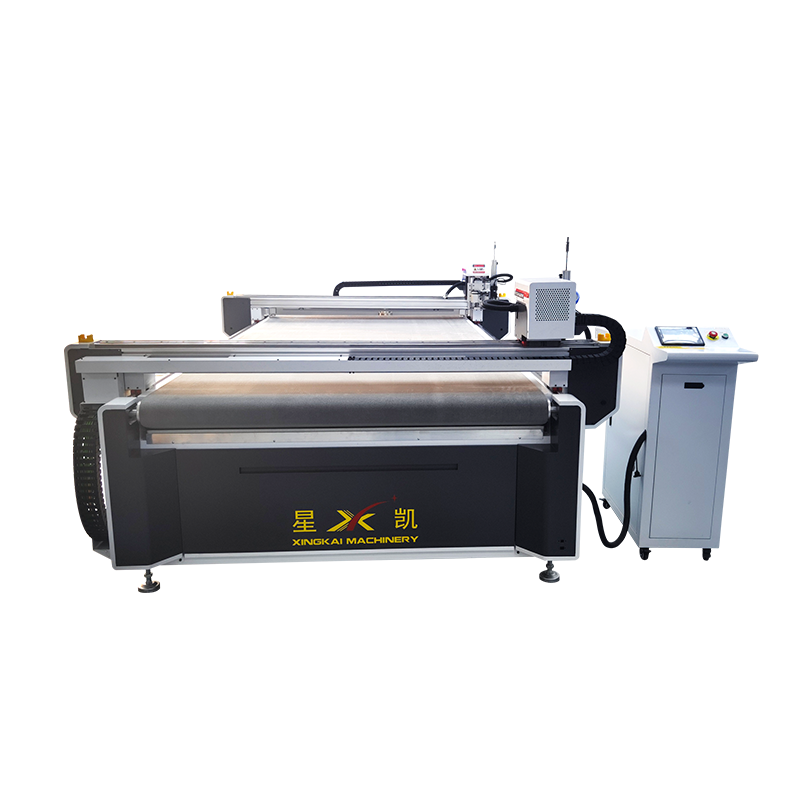

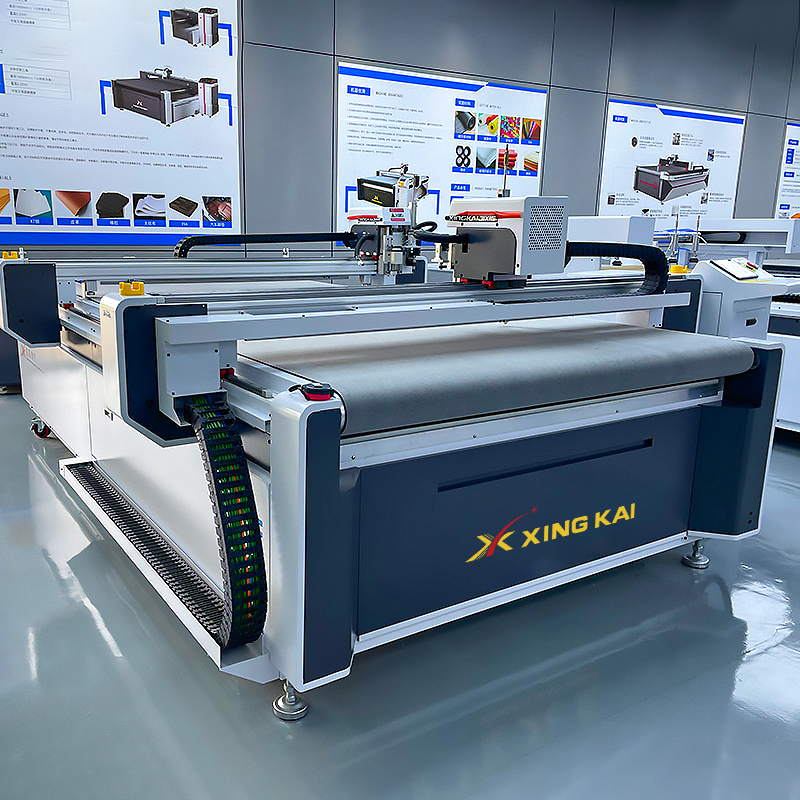

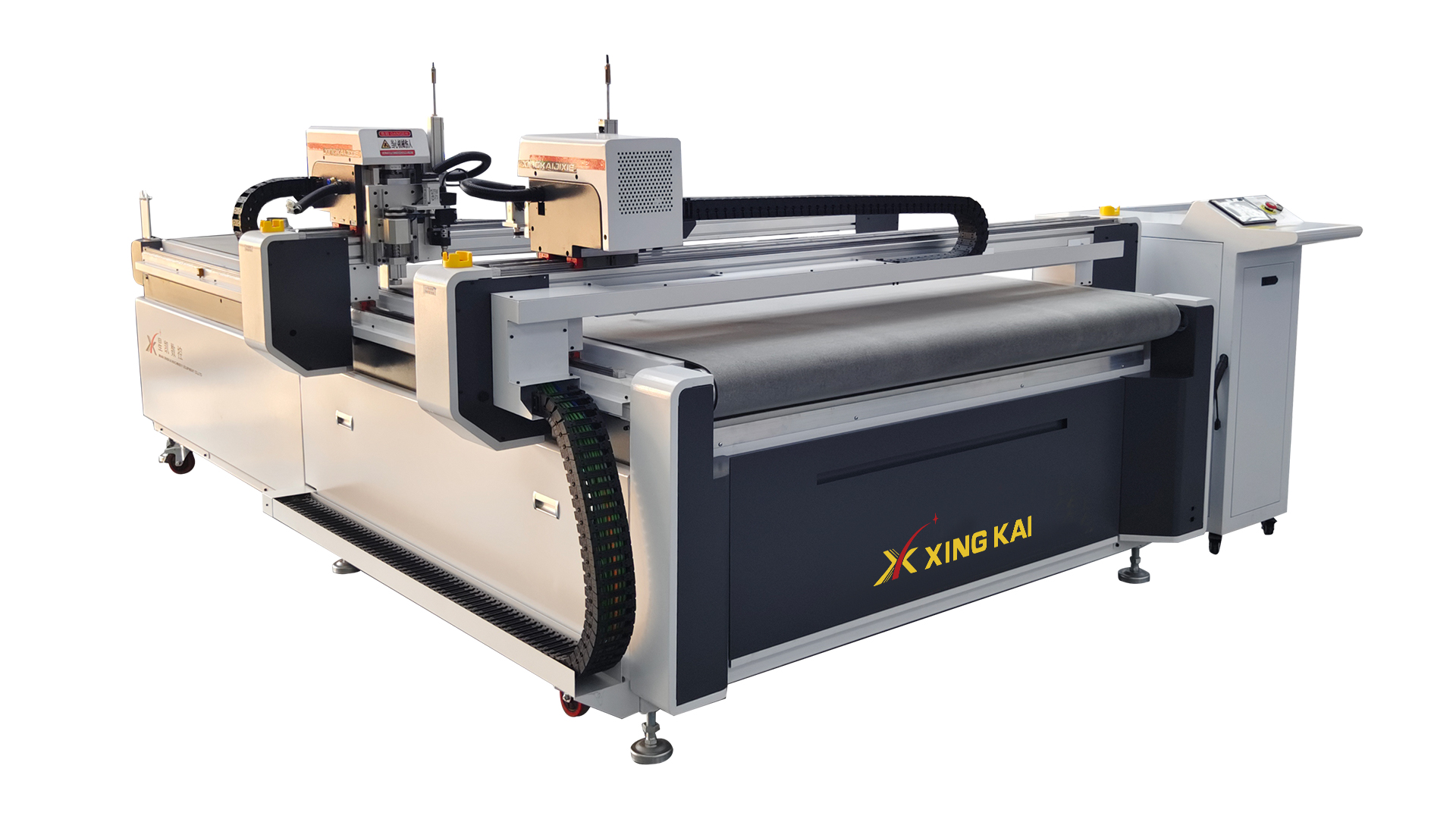

2、Double aluminium crossbeam
The crossbeam adopts double high-strength cast aluminium crossbeam, the large format processing platform can adapt to most of the high-speed processing scenarios and material requirements, aluminium alloy honeycomb adsorption plane, felt guide belt feeding system, with the loading frame can achieve continuous processing of coil materials.
3、Asynchronous cutting
The double crossbeam is equipped with two cutting knife modules to realise dual-station cutting, and the two knife heads can work simultaneously or independently during the cutting process, which greatly improves the cutting efficiency, and is suitable for the production of large-volume orders and accelerates the delivery cycle.
4、servo drive
The whole machine adopts AC servo drive, xY-axis uses precision planetary gear reducer, stronger power, rapid response, transmission using grinding helical tooth rack and linear square rail, with high-strength cast aluminium beam, high-speed operation is smooth and reliable, accurate cutting.
SELECTING A TOOL
振动刀
拖刀
半切刀
铣刀
圆刀
气动刀
压轮
大功率
vibrating knife
Through the principle of high-frequency vibration to cut through the material, more suitable for pvc, kt board below 5mm and medium density flexible materials, you can choose to install 45 °, 26 °, 16 ° and other different angles of the cutting blade to complete the cutting of different thicknesses of materials.
dragging knife
Suitable for cutting pvc material below 5mm as well as rolls, light box cloth and other flexible materials penetration cutting, drag knife has a wider range of applications, according to different materials, you can choose different angles of slicing.
secateurs
Half cutter tool can automatically adjust the depth of the tip of the knife, do only cut through the upper half of the material without damaging the lower half of the material, mainly used in labelling, stickers and other materials cutting, cutting speed can be up to the fastest 100mm/s, can be used instead of cutting the work of the lettering machine.
cutter
The milling tool is used to mill and cut hard materials through the high-speed water-cooled motor rotating at high speed, and can be used to cut hard materials such as acrylic, aluminium composite board, density board, etc. with a thickness of up to 20mm.
circle cutter
The material is cut by rotating the blade at high speed. It can cut a wide range of flexible materials such as flag cloth, non-woven fabrics, textile fabrics and so on.
pneumatic knife
The pneumatic knife is an economical and efficient option for single-ply cutting of glass and carbon fibres as well as technical textiles. In use these knives offer fast processing speeds and a clean, efficient workflow.
press wheels
Creasing tools are used to crease corrugated cardboard and honeycomb board by means of a creasing wheel, which can be used to process materials of different thicknesses.
High Power Vibrating Knife
High-power vibration knife is a professional tool for high-frequency cutting, which can change the frequency of blade cutting to get different processing effect.
FAQ
How can you recommend the right equipment for me?
You need to tell me the following information and I will recommend or customise the product for you:
1、What material are you cutting?
2、What is the maximum size of the original material?
3、What is the thickness of the material?
How do I customise my product?
We will discuss the details with you, clarify your requirements and then provide you with expert advice to ensure that the machine meets all your requirements and is optimally cost-effective.
What is the warranty policy?
Our product warranty is 24 months after delivery, free of charge for major components (except consumables), failures due to quality issues during this period are covered by the warranty.
Can I still get technical support after the warranty expires?
We provide lifetime technical support for our products, you can consult us at any time!
Recommended Products

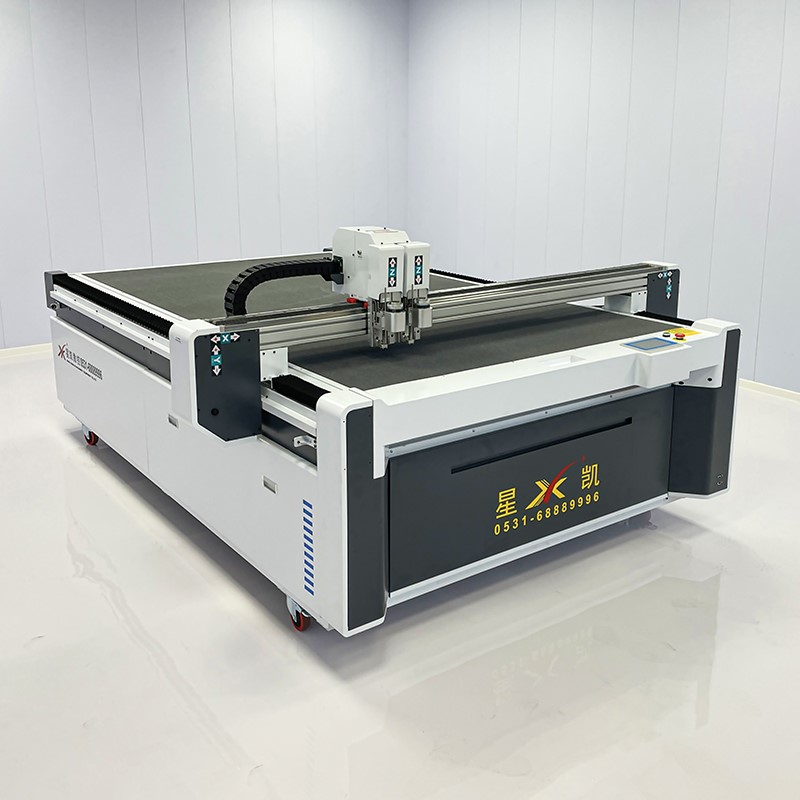

1625/1630 Fixed table Oscillating knife cutting machine
- SIZE/253700*2500*1500mm
- SIZE/304200*2500*1500mm
- Feeding methodmanual feeding

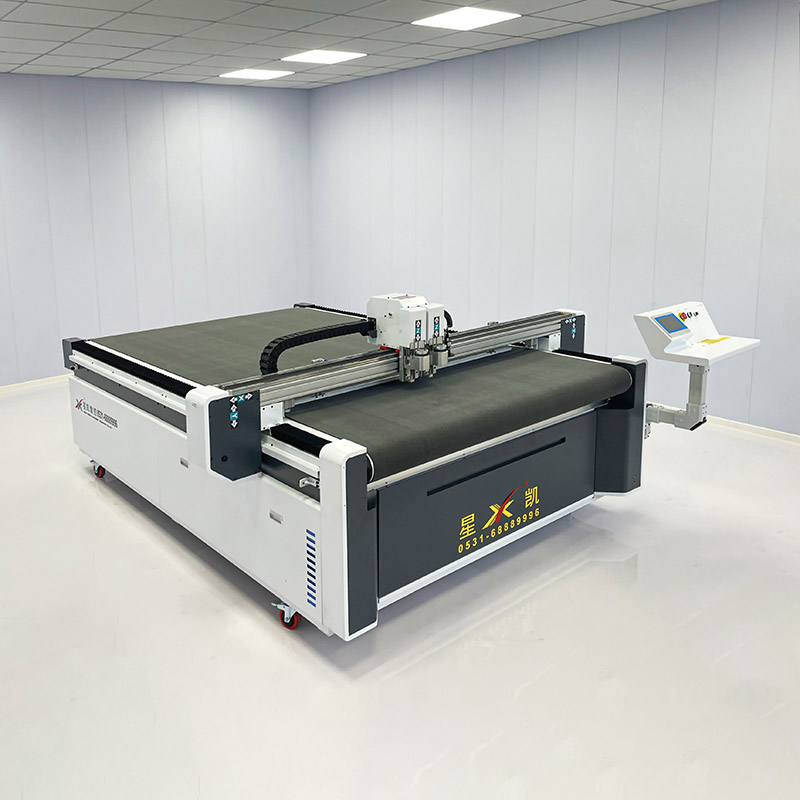

1625/1630 Automatic Feeder Oscillating Knife Cutting Machine
- SIZE/253700*2500*1500mm
- SIZE/304200*2500*1500mm
- Feeding methodAutomatic feeding

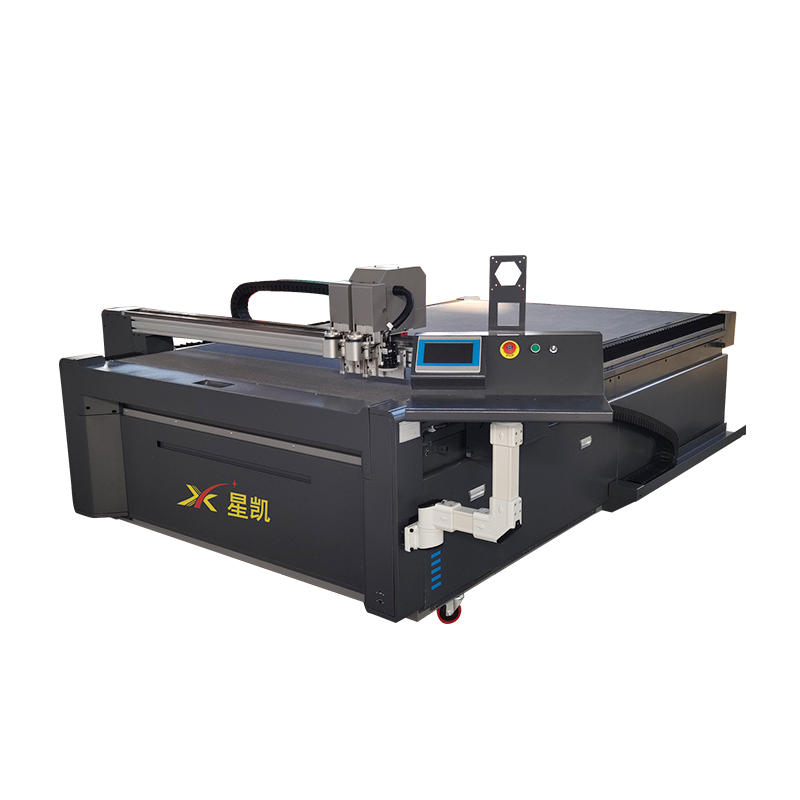

1625 Small camera Oscillating knife cutting machine
